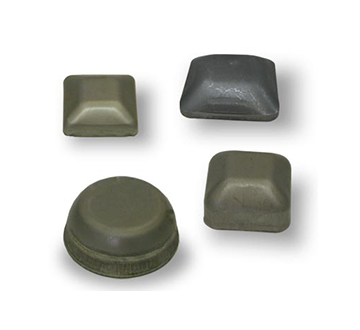

Pallet Feet Cup
Features・Use example

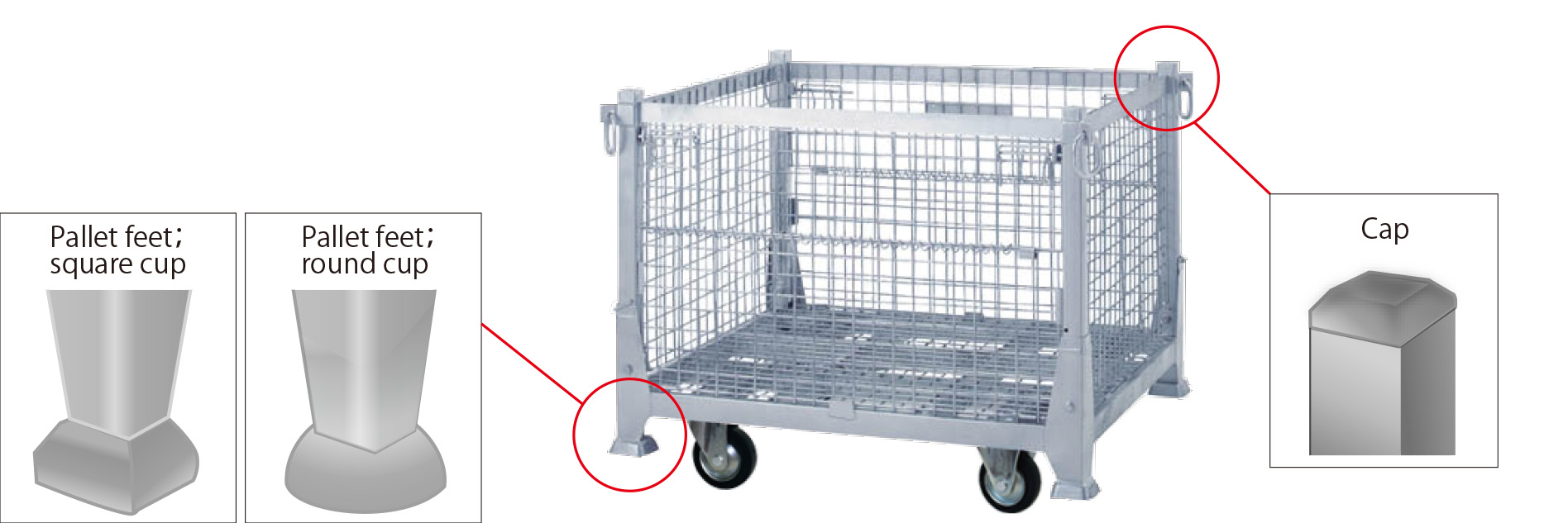

Welding a pallet feet cup to the bottom of each feet keeps a upper pallet from skidding and falling when stacking pallets. Suitable cap available for the top of the post.
Pallet feet cup
|
|
Size |
Bottom side |
Top side |
Height |
Thickness |
Unit weight（kg） |
| Pallet feet；Deep square cup |
OW-1D-8023 |
2.3×80 Square |
80 |
45 |
45 |
ｔ 2.3 |
0.23 |
| Pallet feet；Square cup |
OW-1-8032 |
3.2×80 Square |
80 |
45 |
45 |
ｔ 3.2 |
0.31 |
| OW-1-10032 |
3.2×100 Square |
100 |
65 |
50 |
ｔ 3.2 |
0.47 |
| OW-1-10040 |
4.0×100 Square |
100 |
80 |
35 |
ｔ 4.0 |
0.49 |
| OW-1-12040 |
4.0×120 Square |
118 |
80 |
65 |
ｔ 4.0 |
0.69 |
| OW-1-10045 |
4.5×100 Square |
100 |
65 |
50 |
ｔ 4.5 |
0.59 |
| Pallet feet；Round cup |
OW-2-10032 |
3.2×100 RoundRound |
100 |
– |
50 |
ｔ 3.2 |
0.39 |
| OW-2-12032 |
3.2×120 RoundRound |
120 |
– |
60 |
ｔ 3.2 |
0.52 |
| Pallet feet；Flat-bottomed round cup |
OW-2F-12045 |
4.5×120 RoundRound |
120 |
80 |
48 |
ｔ 4.5 |
0.75 |
Cap
|
|
Size |
Bottom side |
Top side |
Height |
Thickness |
Unit weight（kg） |
| Cap；Square type |
CO-F-5023 |
2.3×50 |
50 |
28 |
10 |
ｔ 2.3 |
0.04 |
| CO-F-4032 |
3.2×40 |
40 |
28 |
10 |
ｔ 3.2 |
0.04 |
| CO-F-5032 |
3.2×50 |
50 |
28 |
10 |
ｔ 3.2 |
0.05 |
|
|
Size |
Bottom side |
Top side |
Height |
Thickness |
Unit weight（kg） |
| Cap；Deep square type |
CO-D-5023 |
2.3×50 |
56 |
28 |
20 |
ｔ 2.3 |
0.09 |
