Features・Use example
・‘Stopper Rubber’ helps to hold a hand truck still when you park it.・There are some non-skid grooves on the back side of the item.
How to use

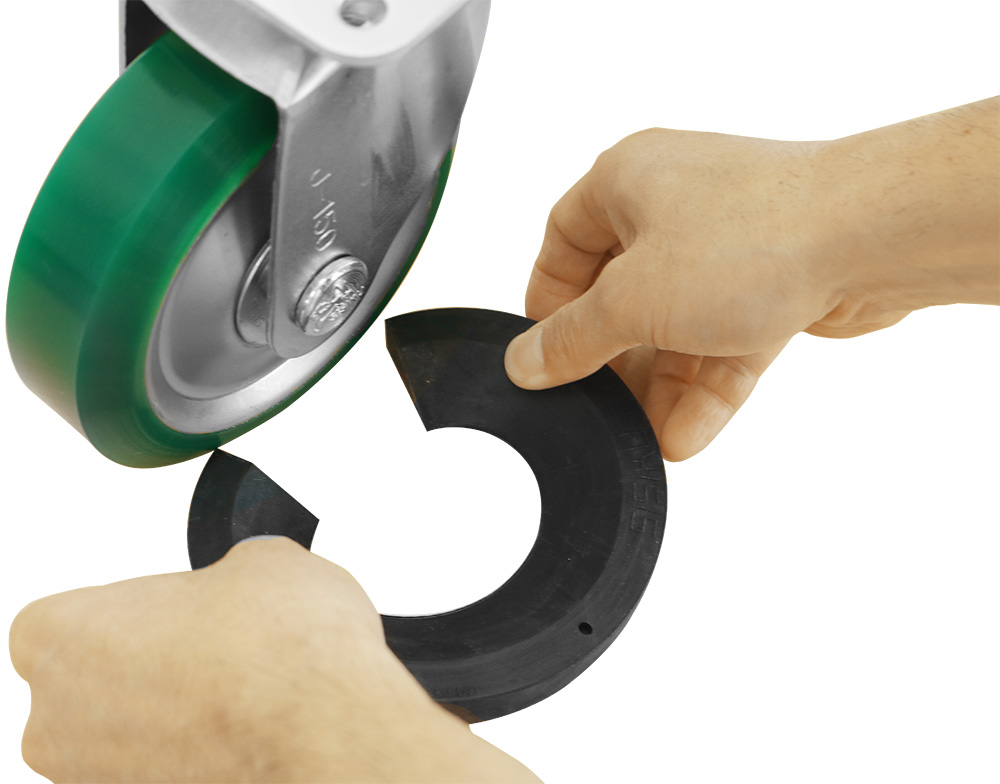

Expand the cut of stopper rubber and put it underneath the castor so as to grip the wheel.
Temporary storage method/How to store temporary

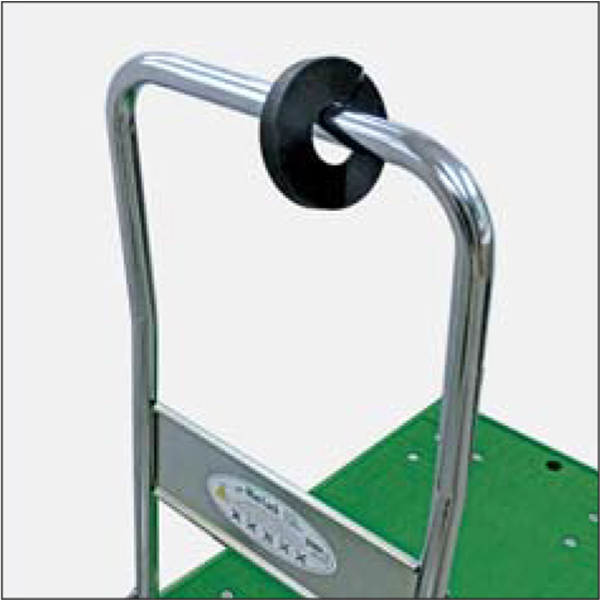

Normal type: The stopper can be hooked on the handle of the truck for storage.

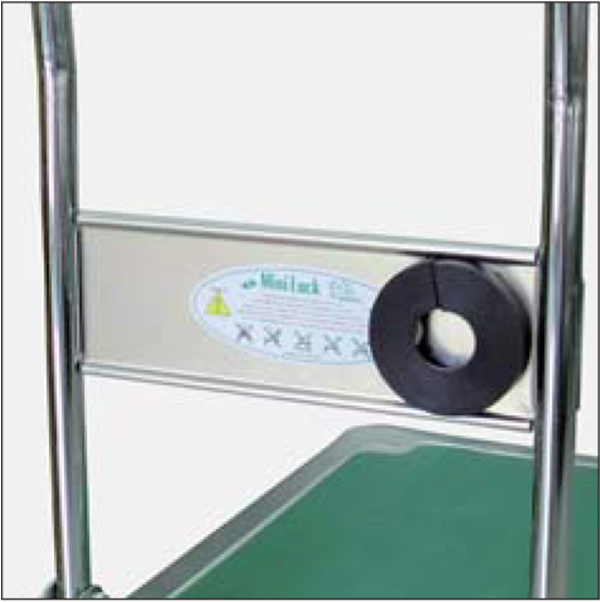

Magnet type: The stopper can be attached to the truck’s name plate for storage.
Stopper rubber
| Diameter | Hole diameter | Thickness | Unit weight（g） | Appropriate wheel diameter | ||
|---|---|---|---|---|---|---|
| SS | STG-SS | 50 | 19 | 6.5 | 14 | 50※ |
| SS size with magnet | STG-SS-MG | 50 | 19 | 6.5 | 14 | 50※ |
| S size | STG-S | 75 | 30 | 10 | 36 | 75～100 |
| S size with magnet | STG-S-MG | 75 | 30 | 10 | 36 | 75～100 |
| M size | STG-M | 100 | 40 | 19 | 122 | 100～130 |
| M size with magnet | STG-M-MG | 100 | 40 | 19 | 123 | 100～130 |
| L size | STG-L | 120 | 50 | 15 | 134 | 150～200 |
| L size with magnet | STG-L-MG | 120 | 50 | 15 | 135 | 150～200 |
